Cortadora eléctrica DX-350 N Laser&Level

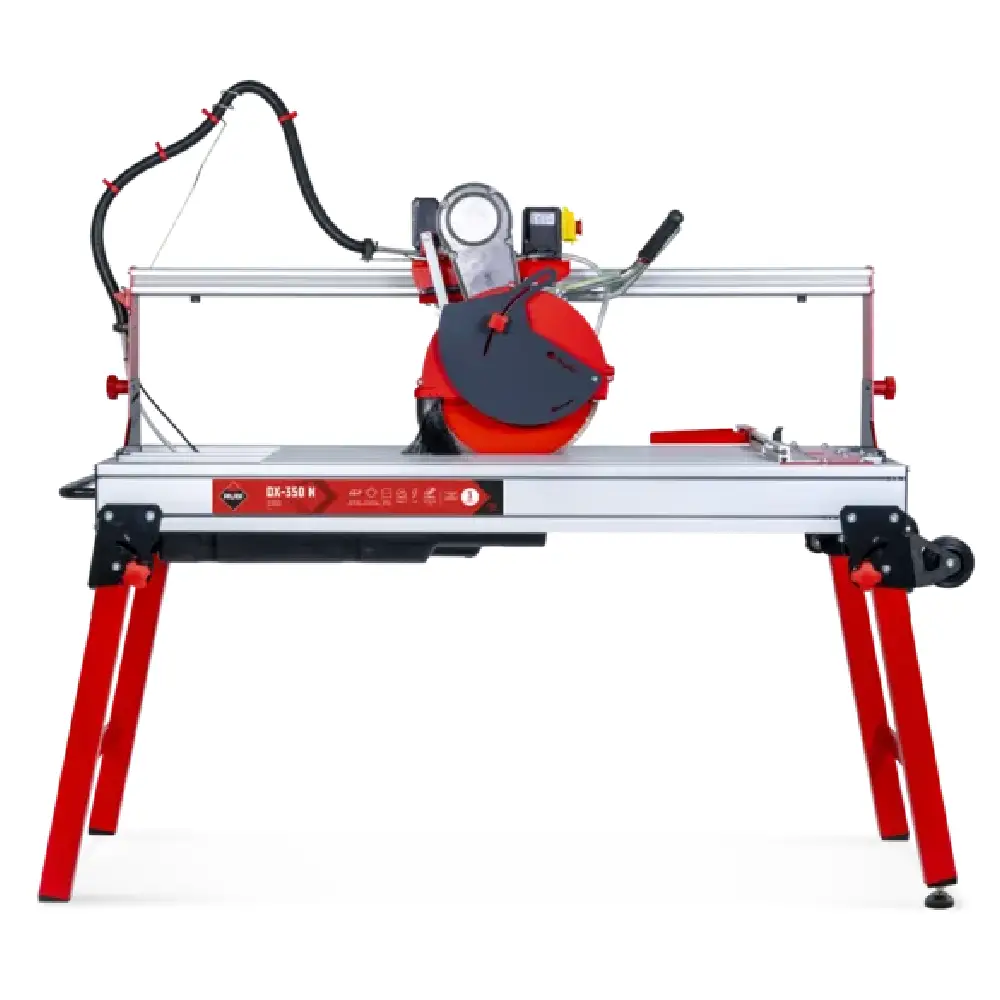

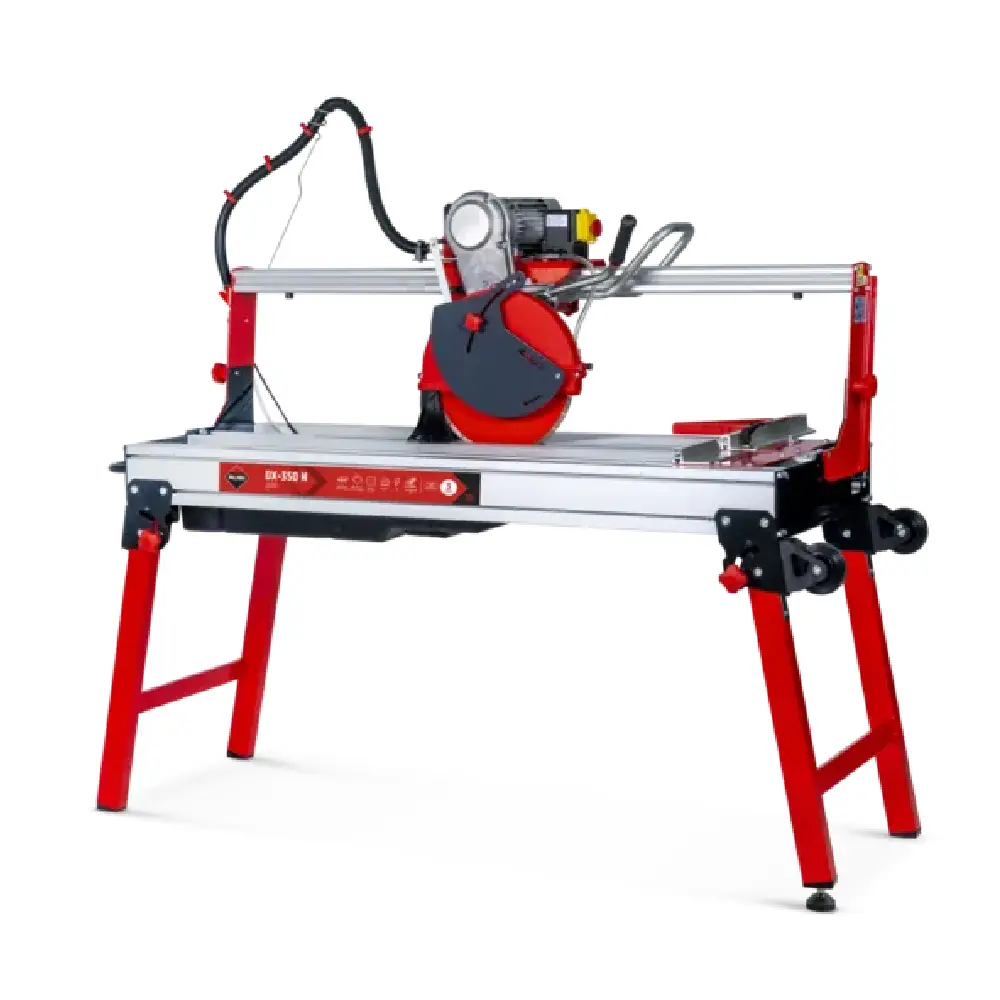

The RUBI DX-350 N Laser&Level is a professional, heavy-duty electric tile cutter with a movable head, designed to offer great versatility in cutting ceramic tile and building materials. Its 3 CV motor, high-performance cutting action, the ability to use 300- and 350-mm diamond blades, and a maximum cutting capacity of up to 220 mm in two passes make it suitable for working with porcelain tile, marble, granite, brick, exposed-face tiles, and refractory materials. The series is available in 1000 and 1300 versions to accommodate different workpiece lengths.

The DX-350 N is designed for professional applications where a conventional ceramic tile cutter may be limited by the thickness, size, or nature of the material. RUBI recommends it for all types of ceramic tiles as well as various construction materials.

Use

Intensive professional use

Machine type

Electric tile cutter with movable head

Power

3 CV

Main power supply

230 V / 50 Hz

Speed

2800 rpm

Ceramic material

Compatible

Porcelain stoneware

Compatible

Marble and granite

Compatible

Brick and exposed brick

Compatible

Refractory material

Compatible

One of the main features of the DX-350 N is its sawing effect. The head can move longitudinally and also descend onto the workpiece, allowing you to start certain cuts from a midpoint and take advantage of a high vertical capacity.

This configuration is especially useful when working with thick materials or when cuts are needed that cannot be made simply by moving the blade horizontally from one end of the workpiece.

Cut-off saw effect

Yes

Adjustable head

Yes

Movable head

Yes

Maximum height in a single pass

105 mm

Maximum height in two passes

220 mm

To reach 220 mm, the cut must be made in two passes, working from opposite sides of the workpiece. This capability makes the DX-350 N a particularly versatile machine for thicker construction materials.

The DX-350 N accommodates diamond blades with outer diameters of 300 and 350 mm and an inner diameter of 25.4 mm. The choice of diameter affects both the cutting depth capacity and the available cutting length.

Blade diameter

300 or 350 mm

Inner diameter

25.4 mm

Maximum thickness

105 mm

Thickness in two passes

220 mm

Maximum miter with Ø350

65 mm

The 300 mm blade achieves the longest published cut lengths for each model. The 350 mm blade provides the capacity needed to reach the maximum thicknesses indicated, although it slightly reduces the available cut length due to the geometry of the assembly.

DX-350 N 1000 direct

102.5 cm

DX-350 N 1000 with crosscut saw

118.5 cm

DX-350 N 1300 direct

132.5 cm

DX-350 N 1300 with crosscut saw

148.5 cm

DX-350 N 1000 direct

100 cm

DX-350 N 1000 with crosscut saw

100 cm

DX-350 N 1300 (straight cut)

130 cm

DX-350 N 1300 with crosscut saw

130 cm

This difference is important when selecting the blade. A larger diameter provides greater vertical capacity, but not necessarily the longest possible cut length.

The cutting assembly is tiltable and allows for mitre cuts. Using a 350 mm blade, RUBI specifies a maximum capacity of 65 mm for this type of cut.

Tilting head

Yes

Mitre cut

Yes

Maximum mitre thickness

65 mm

Blade for maximum miter cut

Ø350 mm

The ability to handle large thicknesses, combined with the tilting head and cut-off saw functionality, makes the DX-350 N suitable for both conventional ceramic tile work and construction applications that require a significantly more powerful and versatile machine.

The motor assembly moves on bearings designed to provide precision and reliability throughout its travel. This feature is particularly important when making cuts longer than one meter, where any play or deviation can significantly affect the final result.

Sliding Mechanism

On bearings

Orientation

Longitudinal

Purpose

Precision in long cuts

The main frame is made of aluminum to combine durability under typical working conditions with a lightweight design for a machine of this performance level.

Frame material

Aluminum

Work tables

Aluminum

Removable tables

Yes

The removable tables facilitate the cleanup of debris produced during wet cutting. This feature is especially useful when alternating between materials that generate different amounts of slurry or particles.

The name Laser&Level refers to the built-in aids designed to facilitate the positioning of the machine and the workpiece itself before starting the cut.

Tracing laser

Yes

Laser power

2 mW

Built-in Level

Yes

The laser projects a line that helps visualize the cutting path and facilitates the alignment of marks previously made on the material. This is especially useful when working with large workpieces, where the opposite end may be more than one meter away from the operator.

The built-in level makes it easier to verify that the machine is correctly installed on the work surface.

The blade is cooled by a water pump with adjustable flow rate. Maintaining adequate cooling helps control the blade’s temperature, remove debris, and maintain optimal conditions during extended cutting operations.

Cooling

Water-cooled

Water pump

Yes

Adjustable flow rate

Yes

Water tank

Removable

The removable tank facilitates emptying and cleaning. The flow rate must be adjusted so that sufficient water reaches the effective contact area between the blade and the material.

The DX-350 N features RUBI’s ZERO DUST system, developed to reduce the amount of respirable particles generated during the cutting process.

Dust Control System

ZERO DUST

Cutting TNO ceramics

Up to 3 continuous hours

Cutting TNO stone

Up to 1 continuous hour

The time estimates correspond to the evaluation conditions and recommendations associated with the ZERO DUST system and do not mean that standard preventive measures can be omitted.

The machine features a swivel mitre that allows the workpiece to be positioned between 0° and 45°. It also has a side stop to facilitate repetitive cuts.

Rotating miter

Yes

Angle range

0° to 45°

Side stop

Yes

Repetitive cuts

Yes

This configuration is useful when multiple workpieces of the same size need to be prepared or when the job requires replicating a specific angle.

The DX-350 N features a protection system that allows it to be used with compatible TURBO and SEGMENTED blades.

TURBO blades

Compatible

SEGMENTED blades

Compatible

Compatible diameters

300 and 350 mm

The ability to use different types of blades significantly expands the range of materials the machine can cut, but each blade must be specifically selected based on the intended application.

• Cutting ceramic tile
• Cutting porcelain tile
• Cutting marble
• Cutting granite
• Cutting brick
• Cutting exposed-face brick
• Cutting refractory material
• Cutting other compatible construction materials
• Straight cuts
• Diagonal cuts
• Repetitive cuts
• Mitre cuts
• Vertical cuts using the cut-off saw effect
• Cutting very thick materials
• Available Models

The DX-350 N Laser&Level series is available in two main lengths for the Spanish market. Both models use a 3 CV motor operating at 230 V and 50 Hz and offer the same maximum cutting thickness. The main differences lie in the cutting length, maximum diagonal cut, dimensions, and weight.

Power supply

230 V / 50 Hz

Power

3 CV

Speed

2,800 rpm

Direct cut Ø300

102.5 cm

Cut-off saw Ø300

118.5 cm

Cutting with Ø350

100 cm

Maximum diagonal

83.5 × 83.5 cm

Thickness in one pass

105 mm

Thickness in two passes

220 mm

Mitre cut with Ø350

65 mm

Compatible blades

Ø300 and Ø350 mm

Blade shaft

Ø25.4 mm

Work table

100 × 58 cm

Working dimensions

170 × 86 × 143 cm

Current net weight

92 kg

The DX-350 N 1000 is the most compact model in this series. With a 300 mm blade, it can make straight cuts of 102.5 cm and reach up to 118.5 cm using the miter cut technique. Its maximum published diagonal cutting area is 83.5 × 83.5 cm.

Power Supply

230 V / 50 Hz

Power

3 CV

Speed

2800 rpm

Direct Cut Ø300

132.5 cm

Mitre Cut Ø300

148.5 cm

Cutting with Ø350

130 cm

Maximum diagonal

105 × 105 cm

Thickness in one pass

105 mm

Thickness in two passes

220 mm

Mitre cut with Ø350

65 mm

Compatible blades

Ø300 and Ø350 mm

Blade shaft

Ø25.4 mm

Work table

120 × 58 cm

Working dimensions

200 × 86 × 143 cm

Net weight

100 kg

The DX-350 N 1300 retains the same power and thickness capabilities but significantly increases its longitudinal capacity. With a 300 mm blade, it achieves 132.5 cm in direct cut and up to 148.5 cm using the miter cut effect. It also allows for diagonal cutting with formats up to 105 × 105 cm.

DX-350 N 1000

Up to 118.5 cm · Diagonal 83.5 × 83.5 cm · 92 kg

DX-350 N 1300

Up to 148.5 cm · Diagonal 105 × 105 cm · 100 kg

The choice between the two variants depends primarily on the size of the workpieces. The power, available blade diameters, and maximum capacity of 105 mm in a single pass or 220 mm in two passes are the same for both models.

The DX-350 N 1000 is suitable when standard workpiece sizes are around one meter and a slightly more compact machine is desired. For larger workpieces, the DX-350 N 1300 provides an additional 30 cm of direct capacity with a 300 mm blade and a significantly larger maximum diagonal.

• CPA-350 SUPERPRO continuous blade, part no. 30931
• CPA-300 SUPERPRO continuous blade, part no. 30930
• TURBO VIPER TVH-350 SUPERPRO blade, part no. 31939
• TURBO VIPER TVH-300 SUPERPRO blade, part no. 31938
• SPT 300 mm PREMIUM blade, part no. 32935

The choice of cutting disc should be based on the material and the type of finish required. In addition to the design of the diamond band, keep in mind that working with Ø300 or Ø350 mm discs affects certain machine capabilities.

• Adjustable longitudinal stop DC/DS/DX, part no. 54844
• Table extension with rollers, part no. 51914
• Laser&Level kit DV/DC/DS/DX, part no. 54999
• Ceramic clamping device for DV/DC/DS/DX, part no. 51916
• 50 cm side stop, part no. 54822
• Set of Ø184 mm DX-350 mounting plates, part no. 51915
• DS/DX table extension, part no. 54991
• Cleaning block, part no. 05973
• Cleaning block-N, part no. 05974
• 230 V 50 Hz EUR power cord with plug, part no. 58850

The removable tables and the removable water tank facilitate periodic cleaning of the machine. Accumulated material debris and sludge must be removed, and the cooling circuit must be kept clean to ensure adequate flow over the blade.

It is also advisable to periodically check the condition of the blade, its secure attachment, the movement of the head on the bearings, and the proper alignment of the entire assembly before performing jobs that require high precision.

Declared vibration

3.49 m/s²
