Cortadora manual HIT-N 800 kg

The RUBI HIT-N is a robust and precise professional manual tile cutter, designed for use with large-format ceramic tiles and particularly well-suited for porcelain tiles. Its 800 kg mobile splitter, the MAGNET system, and the high rigidity of its structure allow for quick scoring and splitting with good visibility and control during frequent installation work.

The HIT-N series is designed for the frequent cutting of various types of ceramic tiles, including wall tiles, glazed stoneware, and porcelain stoneware. Its design is specifically tailored for professionals who need to work with large formats without resorting to an excessively heavy or complex manual tile cutter.

Recommended Material

Porcelain tile

Other Materials

Glazed tile and stoneware

Maximum Capacity

800 kg

Cutting Thickness

3 to 15 mm

Cutter Type

Movable

Drive System

MAGNET

One of the HIT-N’s key features is the MAGNET system integrated into the splitter assembly. This mechanism allows the presser foot to be locked and unlocked during scoring and splitting operations using just one hand, simplifying the transition between the two cutting phases.

One-handed operation allows for greater control over the tile and significantly speeds up repetitive tasks. The separator is movable, so it can be positioned correctly before the necessary force is applied to separate the tile.

The maximum splitting force is 800 kg across all HIT-N models. Therefore, choosing an HIT-850 N, HIT-1000 N, or HIT-1200 N does not change the available force; the main difference between models lies in their maximum length and the tile formats they can accommodate.

The scoring wheel is positioned ahead of the pressure wheel, providing a direct view of the scoring area. This arrangement makes it easier to follow the line marked on the tile and control the path as the machine advances.

Visibility is especially important when working with large pieces, since a deviation during the first few centimeters can affect the outcome of the entire cut.

The slide assembly uses ball bearings to ensure smooth and precise movement during scoring. The guides are solid, made of chrome-plated, ground, and calibrated steel, and feature an anti-corrosion treatment.

Guide diameter

20 mm

Guide material

Steel

Finish

Chrome-plated and ground

Treatment

Anti-corrosion

Sliding mechanism

Ball bearings

The guides are secured with clamps to increase the rigidity of the assembly. This design aims to limit deformation and maintain a stable path for the head when pressure is applied during operation.

The base is made of extruded aluminum and features a closed structure designed to provide rigidity without unnecessarily increasing the machine’s weight. The stability of the base and the guides is particularly important during long cuts, where any movement or flexing can affect the final precision.

HIT-N cutters feature four additional aluminum arms designed to increase the support surface when working with large-format pieces.

Additional arms

4

Arm material

Aluminum

Base

Extruded aluminum

The HIT-N features a side stop to facilitate tile positioning and perform repetitive cuts. It also allows pieces to be positioned for 45° cuts, expanding the range of applications beyond conventional straight cuts.

• Frequent cutting of porcelain stoneware
• Cutting glazed stoneware
• Cutting ceramic tiles
• Cutting large-format tiles
• Straight cuts
• Diagonal cuts
• Repetitive cuts
• 45° cuts
• Working with tile thicknesses from 3 to 15 mm
• Ergonomics

The handle features a Soft-Grip design intended to provide a more comfortable grip during scoring and splitting. This feature is particularly important when the tile cutter is used continuously for professional jobs.

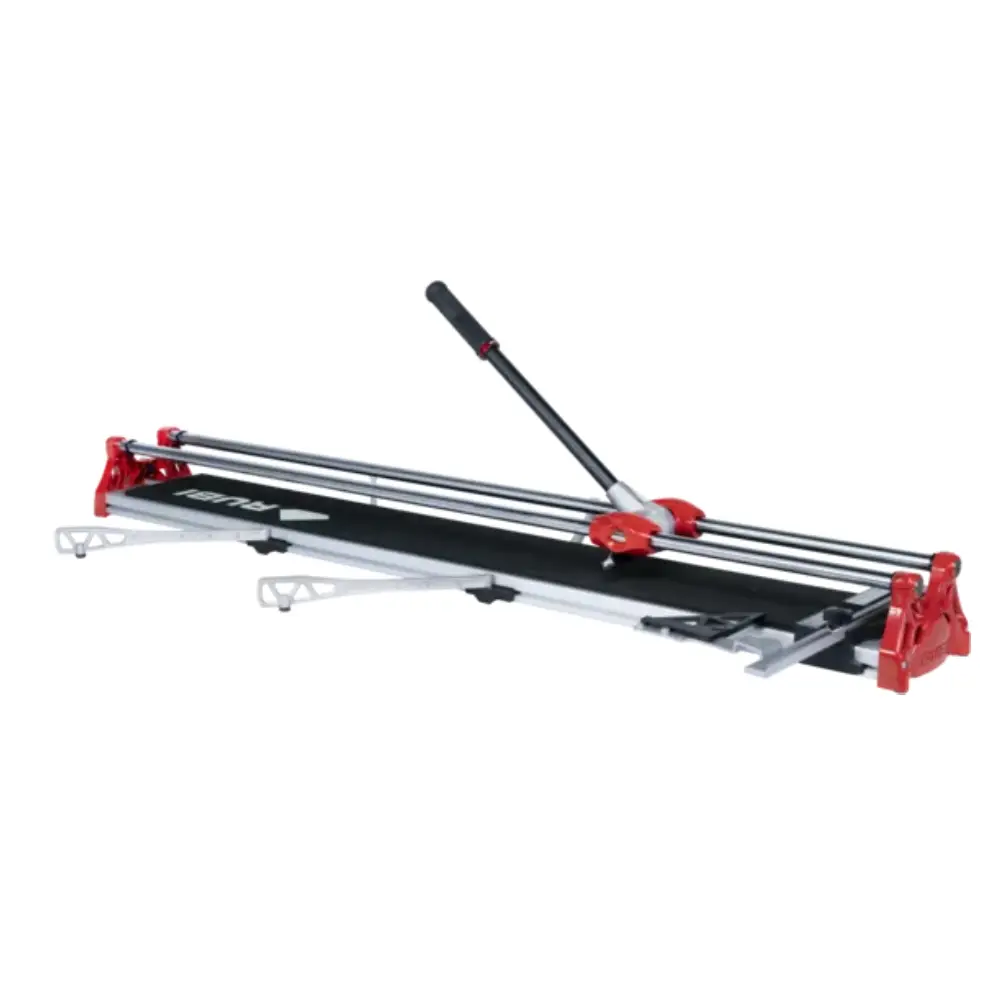

The HIT-N series is available in cutting lengths of 85, 100, and 120 cm. The HIT-1000 N and HIT-1200 N models also come in specific models that include a carrying case, while maintaining the cutting performance corresponding to each length.

Cutting length

85 cm

Maximum diagonal

60 × 60 cm

Cutting thickness

3 to 15 mm

Cutting force

800 kg

Net weight

11.2 kg

Dimensions

850 × 220 × 135 mm

The HIT-850 N is the most compact model in the line. It allows you to work with pieces up to 85 cm in length for straight cuts and with tiles up to 60 × 60 cm when cutting diagonally. It maintains exactly the same cutting force of 800 kg as the longer versions.

Cutting length

100 cm

Maximum diagonal

70 × 70 cm

Cutting thickness

3 to 15 mm

Splitting force

800 kg

Net weight

12.47 kg

Dimensions

1205 × 220 × 135 mm

The HIT-1000 N extends the working length to one meter and allows for diagonal cuts on pieces up to 70 × 70 cm. It is a particularly well-balanced option for professionals who regularly work with formats close to one meter without needing a 120-cm cutter.

Cutting length

100 cm

Maximum diagonal

70 × 70 cm

Cutting thickness

3 to 15 mm

Cutting force

800 kg

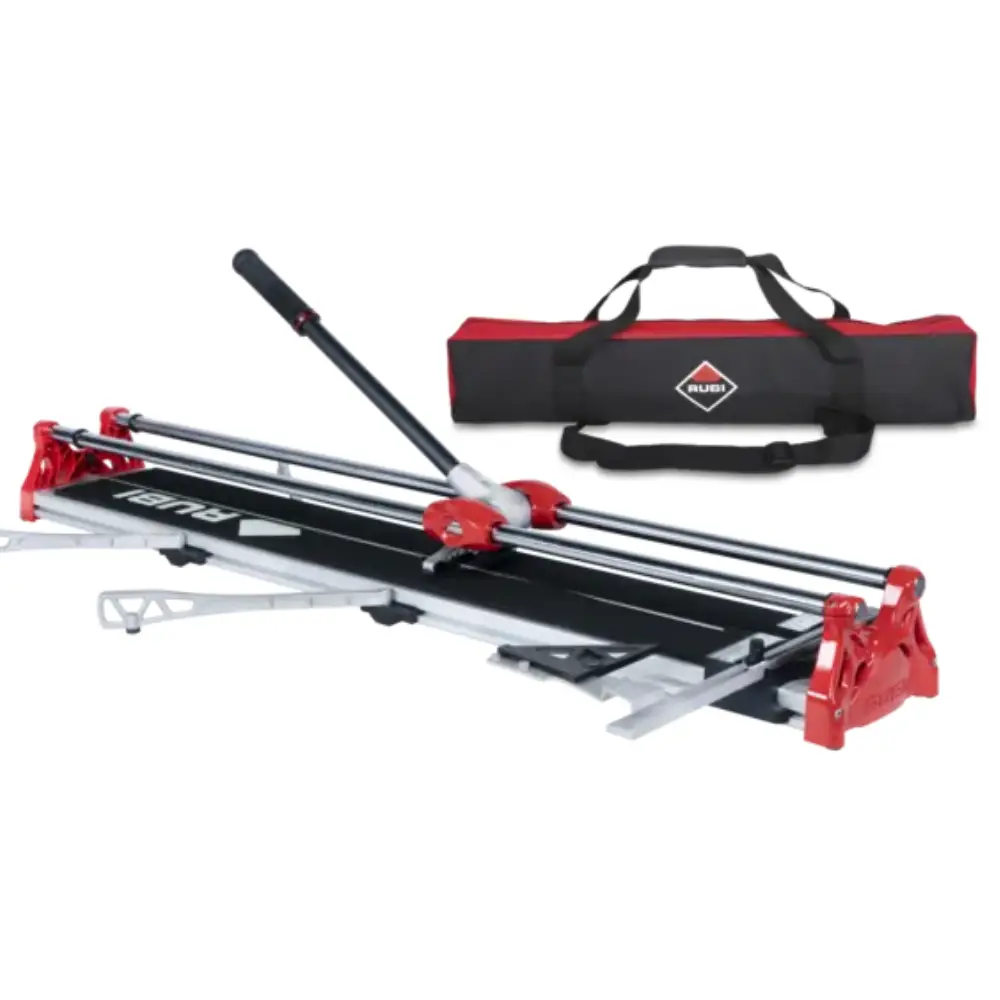

This variant retains the cutting capabilities of the HIT-1000 N and is commercially distinguished by the inclusion of a carrying bag. It has its own part number and EAN, so it must be identified as a separate variant within the same product listing.

Cutting length

120 cm

Maximum diagonal

85 × 85 cm

Cutting thickness

3 to 15 mm

Cutting force

800 kg

Net weight

14.15 kg

Dimensions

1430 × 250 × 145 mm

The HIT-1200 N is the highest-capacity model in the series. Its maximum length of 120 cm allows you to work with significantly larger pieces and make diagonal cuts on tiles up to 85 × 85 cm, while maintaining the same cutting power and MAGNET system as the lower-end models.

Cutting length

120 cm

Maximum diagonal cut

85 × 85 cm

Cutting thickness

3 to 15 mm

Cutting force

800 kg

Listed weight

15.02 kg

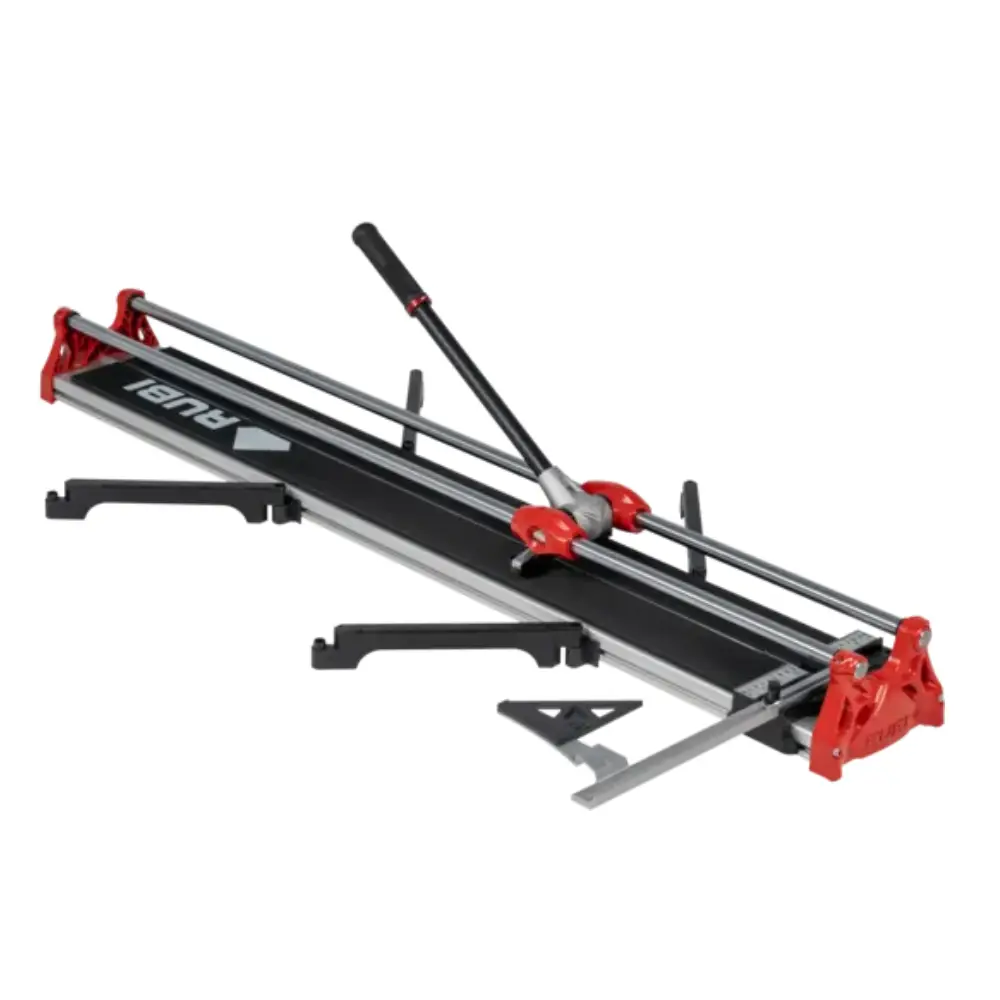

This configuration retains the cutting characteristics of the HIT-1200 N and adds a carrying bag, with its own part number and EAN.

The HIT-N supports different cutting wheel diameters to adapt the scoring to the characteristics and surface of the ceramic material. RUBI currently offers this product line with cutting wheels of 6, 8, 10, 18, and 22 mm, as well as specific GOLD, ENDURE, and EXTREME versions.

• 6 mm cutting wheel, ref. 01945
• Ø8 mm cutting disc, ref. 01958
• Ø10 mm cutting disc, ref. 01946
• Ø18 mm cutting disc, ref. 01950
• Ø10 mm GOLD cutting disc, ref. 01949
• 8 mm Ø ENDURE cutting disc, part no. 01906
• 22 mm Ø EXTREME cutting disc, part no. 01907

The technical documentation for the HIT-850 N and HIT-1000 N specifies a 22 mm cutting disc as standard equipment. The technical data sheet available for the HIT-1200 N specifies an 8 mm cutting wheel.

All HIT-N models offer 800 kg of cutting force and handle tile thicknesses from 3 to 15 mm, so the required cutting length is the primary criterion for choosing between variants.

The HIT-850 N is suitable for cuts up to 85 cm and diagonal cuts of 60 × 60 cm. The HIT-1000 N extends these capabilities to 100 cm and 70 × 70 cm, respectively. For larger tiles, the HIT-1200 N achieves a straight cut of 120 cm and allows for diagonal cutting of formats up to 85 × 85 cm.
