Cortadora manual SPEED-MAGNET 800 kg

The RUBI SPEED-MAGNET is a professional manual tile cutter designed for frequent cutting of ceramic tiles, combining a lightweight yet durable frame with an 800 kg multi-point splitter. Its MAGNET system allows for one-handed scoring and splitting, while the dual guide provides clear visibility of the cutting line. It is available in lengths of 62, 72, and 92 cm to accommodate various tile formats, including stoneware and porcelain tile.

The SPEED-MAGNET is designed as a versatile cutter for professionals who frequently work with different types of ceramic tiles. RUBI recommends it for ceramic tiles, stoneware, and porcelain stoneware, offering a balance between portability, cutting capacity, and cutting power.

Use

Professional

Materials

Ceramic tiles, stoneware, and porcelain stoneware

Cutting Frequency

Frequent

Maximum cutting capacity

800 kg

Cutting thickness

3 to 15 mm

The multi-point cutter incorporates RUBI’s MAGNET system. This mechanism uses a magnetic system to control the scoring and cutting positions and allows the operator to switch between the two operations with just one hand.

During scoring, the mechanism holds the cutter in the proper position so that the scoring wheel can move across the tile’s surface. Once scoring is complete, the operator can activate the system and perform the cut without having to adjust different parts of the machine.

This One Hand Action system is designed to streamline work cycles, especially when numerous cuts are made during an installation.

Spacer type

Mobile multi-point

System

MAGNET

Operation

One-handed

Spacer force

800 kg

The SPEED-MAGNET uses two parallel guides that leave the central work area visible. This configuration makes it easier to follow the line marked on the tile and allows the operator to observe the cutting wheel’s path during scoring.

The guides are made of solid steel with a diameter of 20 mm and undergo chrome plating, grinding, and calibration processes. They also feature an anti-corrosion treatment to increase their resistance to normal use on construction sites.

Guide diameter

20 mm

Guide material

Solid steel

Finish

Chrome-plated and ground

Calibrated guides

Yes

Corrosion-resistant treatment

Yes

The guide supports are made of reinforced aluminum. Their function is to provide rigidity to the assembly and keep the guides properly aligned during head movement.

The main base is made of die-cast aluminum, a solution that reduces the weight of the cutter while maintaining a structure sturdy enough for professional use.

The machine includes side extensions designed to increase the support surface when working with larger pieces. This makes it easier to keep the tile stable and properly positioned during scoring and cutting.

Base material

Die-cast aluminum

Side extensions

Yes

Design

Lightweight and durable

The SPEED-MAGNET features an aluminum side stop designed to facilitate repetitive cuts. By setting a specific measurement, the user can position successive tiles at the same reference point, reducing the need to measure each tile individually.

It also includes a 45° angle guide, allowing for diagonal cuts and other installation operations that require positioning the tile at a specific angle.

Straight cuts

Yes

Diagonal cuts

Yes

Repetitive cuts

Yes

45° cuts

Yes

Side stop

Aluminum

The handle features a Soft-Grip finish to improve grip during scoring and cutting operations. This feature provides greater comfort when the cutter is used continuously throughout a workday.

Handle

Soft-Grip

• Frequent cutting of porcelain tile
• Frequent cutting of stoneware
• Frequent cutting of wall tile
• Straight cuts
• Diagonal cuts
• Repetitive cuts
• 45° cuts
• Work with thicknesses from 3 to 15 mm
• Available Models

The current SPEED-MAGNET range available on RUBI’s Spanish website includes lengths of 62, 72, and 92 cm. Some sizes have different part numbers depending on whether they include a carrying case; therefore, these configurations have their own EAN, even though the machine’s cutting performance is the same.

Cutting length

62 cm

Maximum diagonal

44 × 44 cm

Cutting thickness

3 to 15 mm

Cutting force

800 kg

Net weight

8 kg

Carrying case included

No

The SPEED-62 MAGNET is the most compact option in the series. It allows for straight cuts up to 62 cm and diagonal cuts on tiles up to 44 × 44 cm, while maintaining the same 800 kg maximum cutting force as the longer models.

Cutting length

62 cm

Maximum diagonal cut

44 × 44 cm

Cutting thickness

3 to 15 mm

Cutting force

800 kg

Net weight

8 kg

Carrying case included

Yes

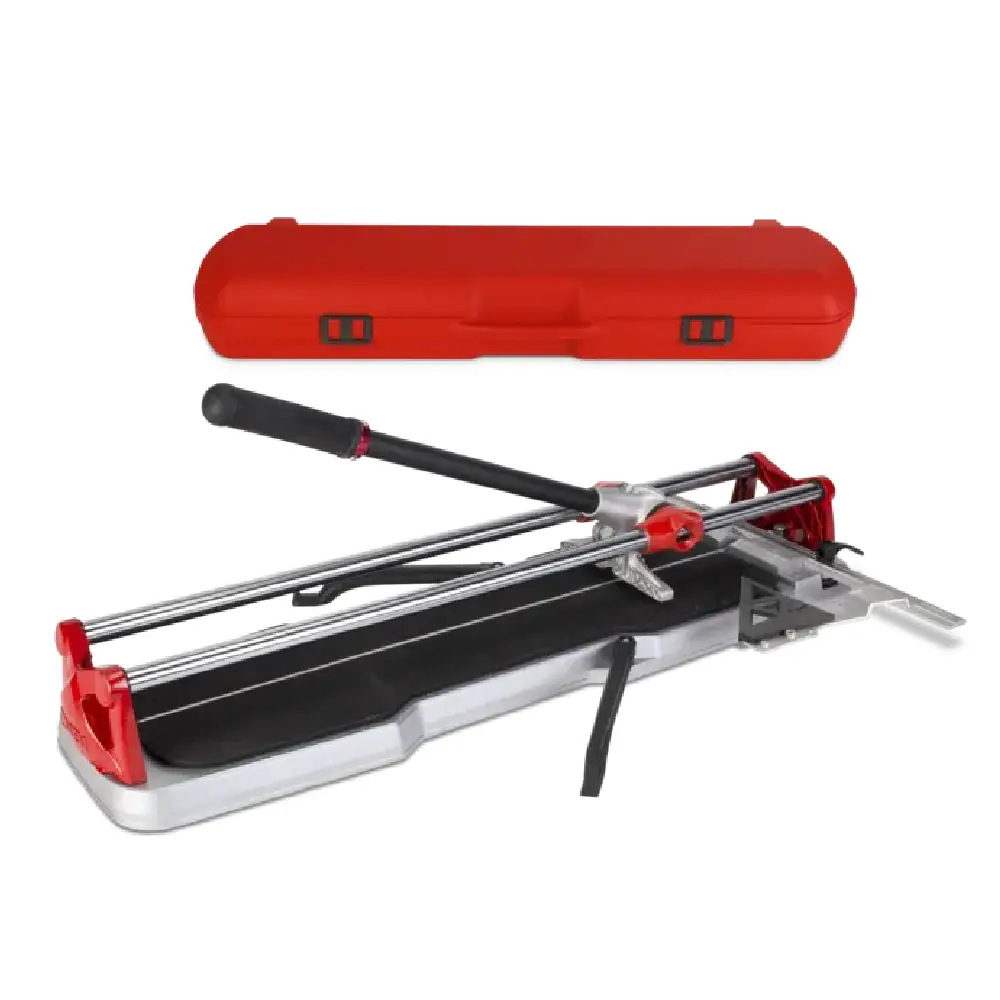

This variant offers exactly the same cutting performance as the SPEED-62 MAGNET and differs only in that it includes a specific carrying case. Since this is a different commercial configuration, RUBI assigns it its own part number and EAN.

SPEED-72 MAGNET with carrying case · Part No. 14989 · EAN 8413797149890

Cutting length

72 cm

Maximum diagonal

51 × 51 cm

Cutting thickness

3 to 15 mm

Cutting force

800 kg

Net weight

9.5 kg

Carrying case included

Yes

The SPEED-72 MAGNET extends the maximum cutting length to 72 cm and allows for diagonal cuts on tiles up to 51 × 51 cm. It is the mid-range option in the product line for those who need greater capacity than the 62-cm version without requiring the dimensions of the SPEED-92.

Cutting length

92 cm

Maximum diagonal

65 × 65 cm

Cutting thickness

3 to 15 mm

Cutting force

800 kg

Net weight

12 kg

Carrying case included

No

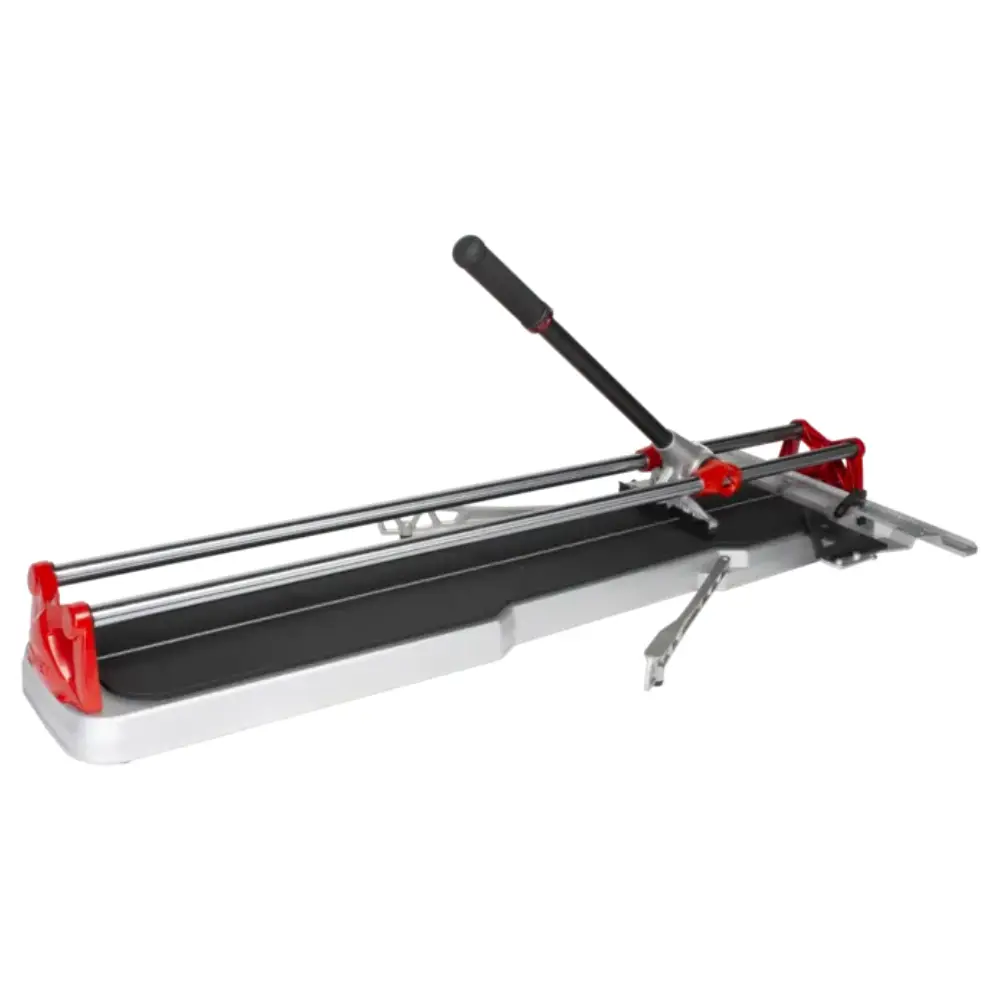

The SPEED-92 MAGNET is the longest model in the series. Its 92 cm capacity allows you to work with significantly larger formats and make diagonal cuts on tiles up to 65 × 65 cm, while retaining the MAGNET system and the 800 kg splitting force found in the other versions.

Cutting length

92 cm

Maximum diagonal

65 × 65 cm

Cutting thickness

3 to 15 mm

Cutting force

800 kg

Net weight

12 kg

Carrying case included

Yes

This configuration offers the same capabilities as the SPEED-92 MAGNET and includes a dedicated carrying case, which is why it has a separate part number and EAN.

The SPEED-MAGNET series allows the use of cutting wheels ranging from 6 to 22 mm to adapt the scoring to the characteristics of each ceramic material. RUBI’s technical data sheets specify an 8 mm cutting wheel included with the machines.

Included cutting wheel

Ø8 mm

Compatible diameters

6 to 22 mm

• Ø6 mm cutting disc, ref. 01945
• Ø8 mm cutting disc, ref. 01958
• Ø10 mm cutting disc, ref. 01946
• 18 mm cutting wheel, ref. 01950
• 10 mm GOLD cutting wheel, ref. 01949
• 8 mm ENDURE cutting wheel, ref. 01906
• 22 mm EXTREME cutting wheel, ref. 01907

Choosing the right scoring wheel allows you to adapt the scoring process to the type of tile and the characteristics of its surface. RUBI offers specific scoring wheels for smooth, rough, or hard-to-cut materials; therefore, selecting the correct one helps ensure proper scoring before cutting.

All three lengths share a cutting capacity of 800 kg and a current thickness range of 3 to 15 mm. The choice depends primarily on the maximum tile size you will be working with.

The SPEED-62 MAGNET reaches 62 cm and allows for diagonals of 44 × 44 cm. The SPEED-72 MAGNET increases these capabilities to 72 cm and 51 × 51 cm. For larger sizes, the SPEED-92 MAGNET allows cuts of up to 92 cm and diagonals of up to 65 × 65 cm.
